Fire Fighting Drone – Fire Rescue
Defense Drones
Product Overview

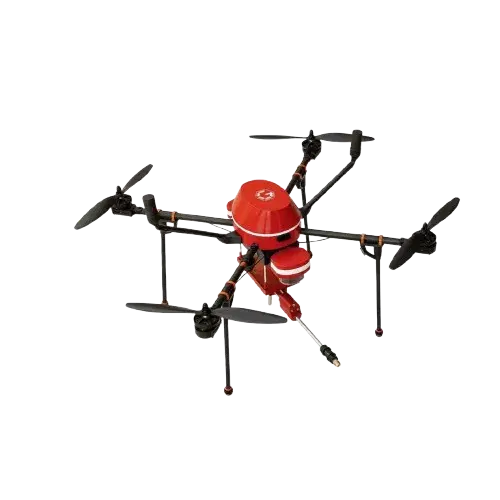

The Fire Fighting Drone (GA-IN-FFD) from Garuda Aerospace is an aerial emergency response platform designed for fire suppression and rescue support in hazardous environments. Equipped with a water spraying system and dual RTK positioning, the drone is designed to support firefighting operations in areas where human access may be restricted or hazardous. The platform is designed to support response operations, reduce the need for personnel in hazardous areas, and support situational awareness during fire emergencies.
Technical Data
Model Name
GA-IN-FFD
Tethered Payload (kg)
2 kg
Gross Weight (kg)
6.5 kg
Rated Climb Rate
2 m/s
Rated Speed
5 m/s
Tested Endurance
30 mins
Rated Height
100 m
Water Spray Distance
7 m
Dimensions
620*620*420 mm
System Features
Integrated foam and water spraying system designed for aerial fire suppression
Equipped with dual RTK positioning for flight stability and targeting
Suitable for deployment during emergency response situations
Offers a stable flight platform for controlled firefighting operations
Aims to enhance safety by reducing firefighter exposure to hazardous zones
Provides monitoring capability for fire incidents
Designed for emergency and disaster response applications
Payload & Sensor System
Obstacle Sensors
Incorporates obstacle detection and avoidance to enhance operational safety
RGB Camera
Provides aerial imagery capability for orthomosaic mapping and inspections
RTK Navigation System
Equipped with RTK technology to support centimeter-level geospatial accuracy
Applications
Fire Rescue Operations
Garuda's Advantage
Reduced response time for operations in hazardous environments
UAV platform for fire rescue and emergency response operations
Decreased operational risk exposure for emergency response personnel
RTK navigation-enabled targeted fire suppression operations
